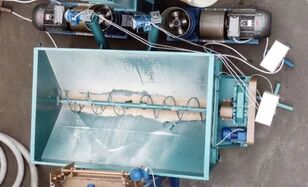

The Peletto ShTP-4-2 dosing screw conveyor with two outlets is designed for precise dosing and uniform material feeding in high-capacity pellet production lines where two pellet mills operate simultaneously.

Using one dosing screw conveyor with two outlets instead of two separate units saves space, simplifies the feeding of animal feed, sawdust, and other bulk materials, and allows the entire system to be controlled from a single control panel.

The ShTP-4-2 model is equipped with a large 4 m³ hopper. Thanks to its design, the hopper can be filled using a loader, eliminating the need for manual loading. This reduces material spillage and speeds up the entire production process.

The specially designed shape of the hopper directs the material to the lower central section, where it enters the improved mixing system. The system is equipped with two counter-rotating ribbon agitators that evenly direct the material toward the two separate feeding outlets.

Each outlet can supply a separate pellet mill, making the ShTP-4-2 ideal for high-capacity production lines with two pellet mills operating simultaneously.

Key advantages:

Two separate outlets for simultaneous feeding of two pellet mills
Large 4 m³ hopper
Precise and uniform dosing of raw material
Hopper can be filled using a loader
Space-saving solution compared with two separate dosing screw conveyors
Control from a single control panel
Improved mixing system with two counter-rotating ribbon agitators
Stable material feeding to the pellet mills
Custom modifications available

The precise feeding system helps protect pellet mills against overload. Uniform raw material feeding allows the machines to operate within the specified load range, supporting high productivity and extending the service life of the equipment.

The use of a dosing screw conveyor with two outlets can also reduce the number of personnel required to operate the production line. A production line without a crusher and dosing unit can be operated by one operator.

Each outlet of the screw conveyor is equipped with a neodymium magnet to help protect the pellet mill dies from metal particles that may be present in the raw material. For raw materials containing larger foreign objects, the hopper can additionally be equipped with a screening grid.

Technical specifications:

Model: ShTP-4-2
Power supply: 400 V
Total motor power: 5.5 kW (4 kW + 2 × 0.75 kW)
Motor speed: 1,500 rpm
Capacity: up to 8,000 kg/h
Hopper capacity: 4 m³
Weight: 870 kg
Dimensions: 3,100 × 2,300 × 1,940 mm

Available modifications and configurations:

Dosing screw conveyor with two outlets and enlarged hopper
Modification designed to feed two 37 kW pellet mills.

Dosing screw conveyor with two outlets and reduced 1.5 m³ hopper
Modification designed to feed two pellet mills of up to 22 kW each.

Dosing screw conveyor with two outlets and funnel-shaped hopper
Modification designed for raw materials with reduced flowability.

Dosing screw conveyor with one outlet and enlarged hopper
Version designed for raw materials with low bulk density.

Net purchase with a valid VAT number.

Condition: New

Year of manufacture: 2025
